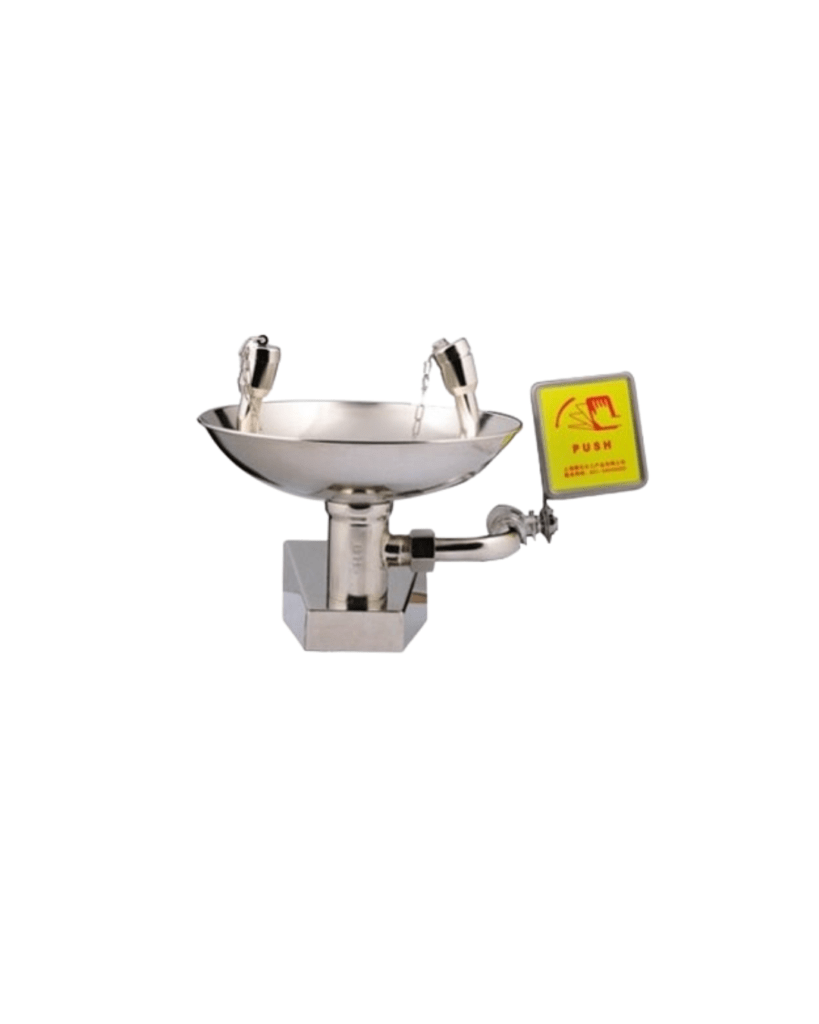

Wall mount eyewash

A wall-mounted eyewash station is a safety device designed to provide immediate emergency relief in case of eye exposure to hazardous chemicals, particles, or substances. It is typically installed on a wall, providing easy access and quick response in workplaces where there is a risk of eye contamination. Here are some key features and characteristics of a wall-mounted eyewash station.



Wall mount Eyewash Stations  in order to have better protection, please read this manual before usage. ​This manual is applied for our Wall mounted Eye Wash station, this product is used for quick washing when accident occurs on site, and reduce the injure level of people.



Portable eyewash station

Wall Mounted Eyewash Station Supplier in Dubai, UAE

Clear Vision, Quick Response: The Benefits of Wall-Mounted Eyewash Stations

Introduction:

In labs, factories, and other places where dangerous stuff is around, having a fast and easy way to help your eyes is super important. Wall-mounted eyewash stations are made for this exact reason – to quickly help if something bad gets in your eyes. In this guide, we’ll talk about why wall-mounted eyewash stations are so important for keeping everyone safe at work.



What is a Wall-Mounted Eyewash Station?

A wall-mounted eyewash station is a special machine that sprays water on your eyes to wash out anything that shouldn’t be there, like chemicals or dust. They’re put in easy-to-reach spots at work so you can use them right away if something gets in your eyes.



Key Features of Quality Wall-Mounted Eyewash Stations:



  1. Quick Activation:

These eyewash stations are made to work right away when you need them. This helps you get help for your eyes as fast as possible.



  1. Consistent Water Flow:

Good eyewash stations have a steady stream of water that helps clean out your eyes without hurting them more. Some even work without using your hands so you can focus on washing your eyes.



  1. Durable Construction:

Look for eyewash stations that are strong and won’t break easily. Stainless steel or tough plastic are common materials used in quality eyewash stations.



  1. Easy Maintenance:

It’s important to keep eyewash stations clean and working well. Choose one that’s easy to clean and has features to prevent water from sitting and getting gross.



Benefits of Wall-Mounted Eyewash Stations:

  1. Rapid Response:

These stations are put in easy-to-reach spots so you can quickly help your eyes if something bad happens. Acting fast can help prevent serious eye injuries.



  1. Compliance with Safety Standards:

Having these stations at work helps make sure everyone is following safety rules. This is really important for keeping the workplace safe.



  1. Versatility in Placement:

Because they’re mounted on walls, these stations can be put in different places around work where eye injuries are more likely to happen.



  1. Minimized Eye Damage:

Using an eyewash station right away can help reduce how bad an eye injury gets. Washing out harmful stuff quickly can stop it from causing more damage.



Choosing the Right Wall-Mounted Eyewash Station:

When picking an eyewash station, think about things like how fast the water flows, how easy it is to use, and how simple it is to keep clean. Make sure the one you choose meets safety rules.



Conclusion:

Keep your work buddies safe by getting wall-mounted eyewash stations. These machines are super important for helping with eye injuries quickly and effectively, making the workplace safer for everyone. Check out our selection of eyewash stations to find the perfect one for your workplace and show that you care about safety and your co-worker’s well-being.

Technical Data and Parameters

1.Constitute: eye washer system.
2. Material: made of stainless steel 304.
3.On/off method: manual, flip cover (optional), full automatic (optional).
4. Water flow of eye washer: the water pressure is above 0.25Mpa, the water flow is above 11.4 L/min.
5.The designed pressure: 0.6Mpa.

Usage of Wall mounted Eye Wash station

Manually push the board, the water would inject from the eye wash nozzles, and please reset the valve after usage and put the nozzle covers back on.
1.Eye wash nozzles: the water comes out for eye and face washing.
2.Anti-dust covers: dust proof soft cover to protect eye wash nozzles.
3.Base: used for eye washer fixture.
4. Filtering net: used for filtering the impurities and dirt in the water. Filters are optional
5. This product is used for emergency situation, it would temporary slowdown the invasion of hazard material to the eyes and face, for further treatment and medical care, please go to the hospital.

Installation and Maintenance

1.The equipment is installed around the working area with hazard, usually in a range of 10 to 15 meters,
2. The dimension of water inlet is 4″, and the dimension of water outlet is 5/4″.
3.Wash the eyes and face for at least 10-15 minutes.
4.Assembly of eye washer: assemble according to the diagram.
5.lt is better to take training of knowledge and operation to all users before the usage.
6.The equipment needs to be checked regularly, any issues to be found needs to inspected and solved.

Warranty

Since the date of sales, within one year any damage caused by nature reason would be ok to send back to us and we would provide free replacements (site repairing needs to be written in the contract); if it is damaged by people, we would charge the material, labor and transportation, etc depends on the situation. And when warranty expires, we provide service with charges.

Instruction of Assembly Steps

Step 1: set up the direction of the base, and connect to the wall with plug bolts.
Step 2: put the eye wash bowl on the eye wash assembly, and connect with the joint.
Step 3: connect the horn shape elbow pipe  to the joint.
Step 4: connect the manual switch  to the 4″ water inlet control valve  and tight it.
