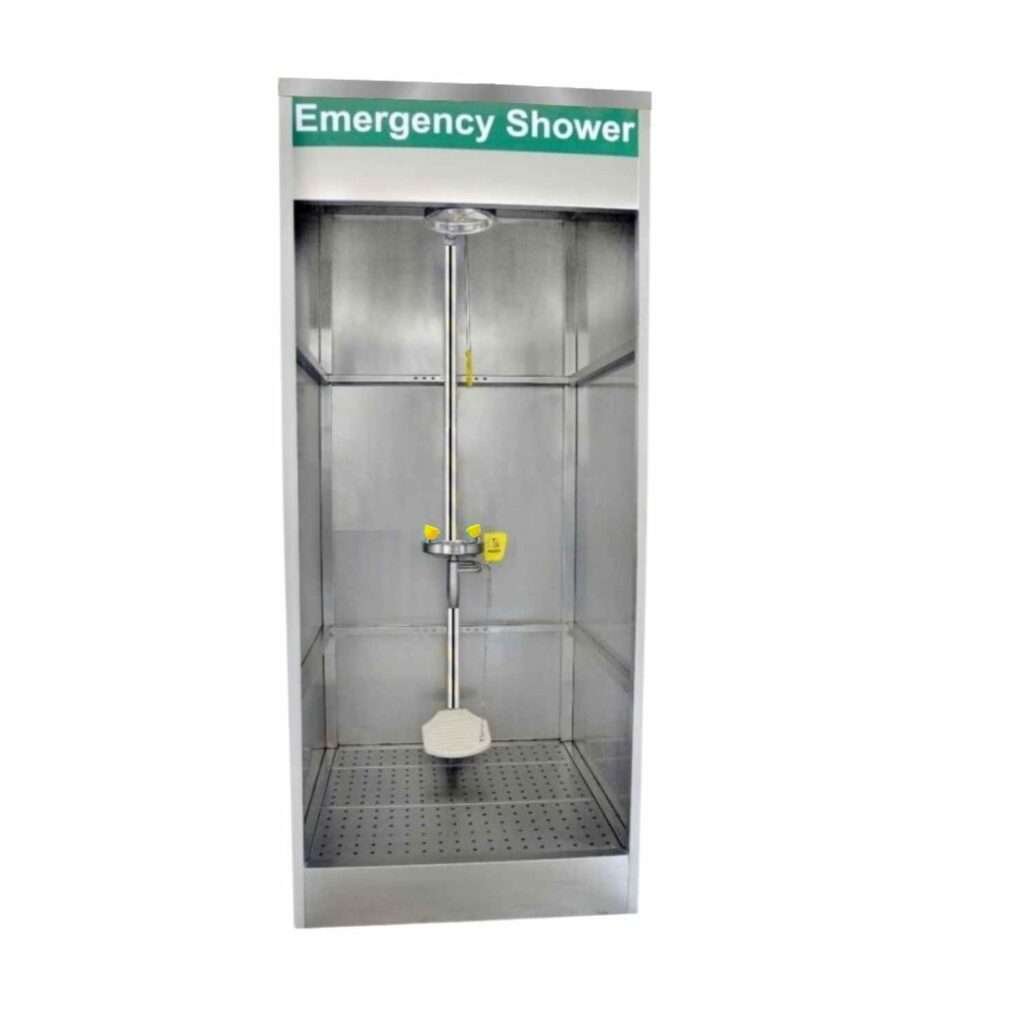

EMERGENCY SHOWER ROOM
Eyewash Shower Room
Model : EW06
Material Shower : 304 Stainless Steel
Material Cabinet : 304 Stainless Steel 1mm
Material Structure : 304 Stainless Steel tube
Water Pressure : 0.25 to 0.40 Mpa
Shower Operation : Pulled chain valve
Shower Height : 2100 mm
Eyewash Operation : Foot Operated
Eye wash flow : 11.4L per minute
Water Inlet : 1/2″
Water Outlet : 1. 1/4″
Cabinet Size : H2400 x W1100 x D1100
Similar Products
Emergency Shower Room Supplier in Dubai, UAE
An emergency shower room, often referred to as an emergency safety shower or simply a safety shower, is a specialized facility designed to provide immediate decontamination and relief in the event of chemical exposure to the body, particularly the skin and clothing. These facilities are commonly found in industrial, laboratory, and workplace settings where there is a risk of chemical or hazardous material exposure. Here are some key features and characteristics of an emergency shower room.
Eyewash Shower Stations are used for industries such as gasoline, chemical, beverage, medical, etc, when there is accident like chemical liquid, hazard material or fire injects to the body, face, eyes of people, this equipment can reduce the injure level with water washing. The eye washer must be installed around the work area with potential hazard, usually 10-15 meters away.
2. Manufacturing processes: the whole pieces takes blasting treatment to increase the surface brightness anti-corrosive ability.
3. Eye wash bowl: size: the diameter is 260mm, and the thickness is 0.6mm, it is used for collecting the used water. Shower bowl: the diameter is 260mm, and the thickness is 0.6mm. The edge of bowl is 2100mm high to the ground. This bowl is used for shower spray. Manufacturing process: multiple punching through rotate molding, the bowl edges are flipped without blurs, the brightness after polishing is high and this appearance guarantees the long lifetime.
4. Eye wash nozzle covers: made of stainless steel 304, put the covers on the nozzles, in order to prevent dust and avoid water gets polluted when needed.
5. Water inlet pipe: 5/4” threaded connection, about 1580mm high to the ground.
6. Water inlet and outlet: DN32 / DN40 or customized according to customer’s request.
7. Switch board: hand push switch board controlled with ball valve, and the puller controls the shower system.
8. Eye wash nozzles: made of stainless steel 304. The filtering nets are high density double layer nets (PP + stainless steel), which can be used to filter the impurities, the sprayed water is like fog, soft and wet.
10. Function: strongly against corrosive liquid such as acid, alkaline, salt, oil, etc.
11. Used for: industries such as gasoline, chemical, beverage, medical, etc, when there is accident like chemical liquid, hazard material or fire injects to the body, face, eyes of people, this equipment can reduce the injure level with water washing.
12. Standard: Complied with US ANSI Z358.1.2004.
13. Please read the installation manual carefully before installation and check the part list, then carry out the assembly according to the part number of assembly diagram and instructions in the manual.
14. The eye washer must be installed around the work area with potential hazard, usually 10-15 meters away, where has connection to the supply of clean water/filtering water, there should be no barrier in the range of 10-15 meters of install position.
15. Dimension of water inlet/outlet: NPT1.1/4’ or 3/2” (DN 32/DN40) or customized according to customer’s request.
Emergency shower rooms play a critical role in minimizing injuries and preventing the spread of hazardous chemicals in industrial and laboratory settings. They are crucial for providing immediate decontamination and first aid in case of chemical exposure to the body. Proper installation and maintenance are key to ensuring the equipment’s readiness during emergencies.
